Micro 5Pin male pcb terminal connectors
1.Specification
| Electrical | |
| Current Rating: | 1A/contact terminal |
| Voltage Rating: | 30V DC/100V AC |
| Contact Resistance: | 50 milliohms MAX |
| Insulation Resistance: | 100MEGA ohms MIN |
| Dielectric Withstanding Voltage: | 300 V AC AT Sea Level |
| Mechanical | |
| Connector Mate and Unmate Force: | Mate force: 3.0kgf(MAX) Unmate force:0.9kgf(MIN) |
| Terminal Retention: | 0.5kgf(MIN) |
| Material; | |
| Housing: | High Temperature Thermoplastics UL 94V-0 PBT/LCP |
| Contact: | Copper Alloy C2680/C5191 |
| Shell: | Copper Alloy C2680/SPCC |
| Finish | |
| Contact: Plated Gold in Mating Area: | Tin On Solder Talls, gold flash,3u, 15u, 30u can be DIY. |
| Shell: | Nickel Plating |

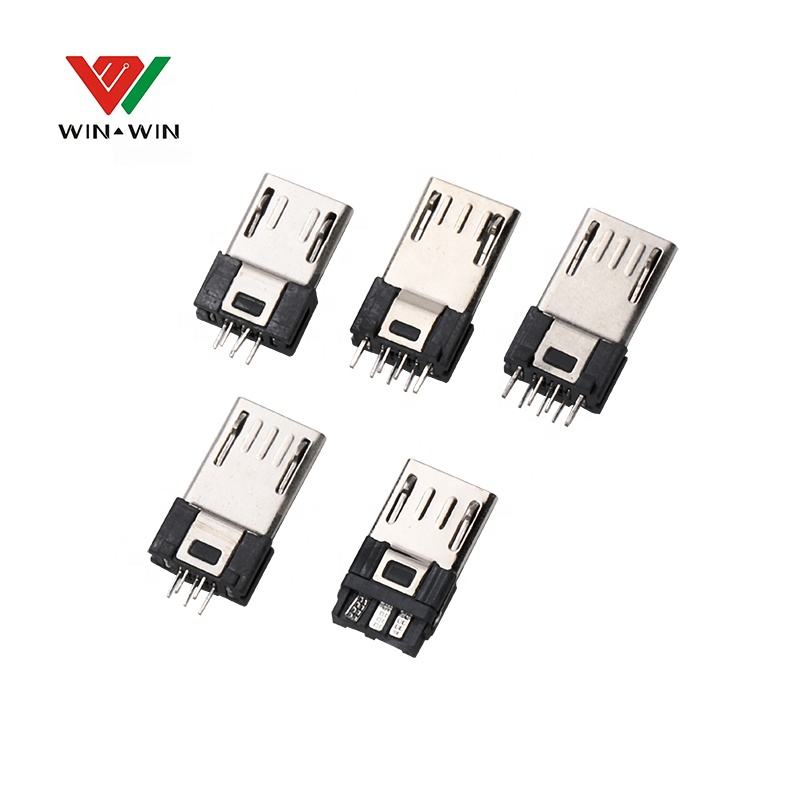

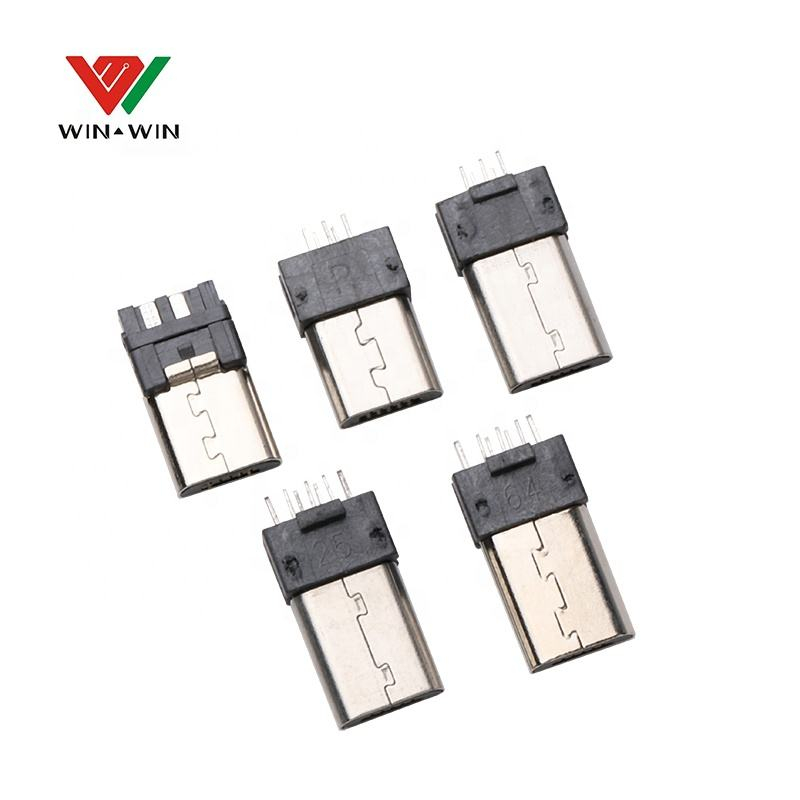

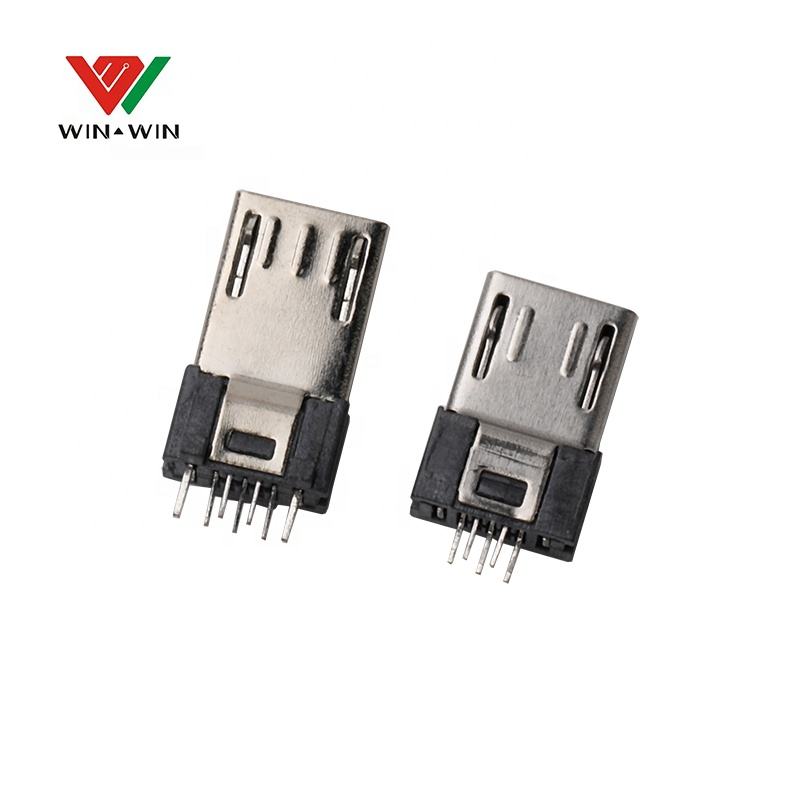

2. Product Details Picture.
3.Our factory.
4. Our product range.
5. Our clients worldwide.
6. Our Advantages.
7. Our Certificates.
8. Our Production Process.
9. Our Marketing Worldwide.
10.Safety Delivery Globalization.
11. Any questions, pls feel free to ask us as below contact.
